CCS AH36 Marine Steel Plate

Structural steel for ship hulls is divided into strength classes
according to its minimum
yield strength: general strength
structural steel and high strength structural steel. Maine
steel plate refers to hot rolled steel plate produced in
accordance with the requirements of the classication
society for the construction of ship hull structures.

Classification ：

Shipbuilding Steel Plate

+86-18615692579

info@zghaohaisteel.com

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

PRODUCT DETAILS

Brief introduction of marine steel plate

Marine steel plate refers to structural steel used in ship building. It is considered a marine grade and must be able to resist corrosive effects that are common in a water environment. To achieve this, special alloying elements are added to these grades in order to defend agaist corrosion.While most carbon steel is not suited for marine environments, there are several marine grade carbon steels that have been approved by the different societies for shipbuilding applications.

Structural steel for ship hulls is divided into strength classes according to its minimum yield strength: general strength structural steel and high strength structural steel. Maine steel plate refers to hot rolled steel plate produced in accordance with the requirements of the classication society for the construction of ship hull structures.

There are 9 main classification societies in worldwide.
A.B.S    American Bureau of Shipping
B.V.     Bureau Veritas
C.C.S.   China Classification Society
D.N.V   Det Norske Veritas
G.L.    Germanischer Lloyd
K.R.    Korean Register of Shipping
L.R.    Lloyd’s Register of Shipping
N.K.    Nippon Kaiji Kyokai
R.I.N.A Registro Italiano Navale

Grade AH36 steel is the impact force subjected to 0 ° C
Grade DH36 steel impact force at -20 ° C
Grade EH36 steel impact force at -40 ° C
Grade FH36 steel impact force at -60 ° C

Shot blasting service
Shot blasting is a method used to clean or polish steel when enhanced surface finishes are required. Shot blasting is used in almost every industry we serve. Especially in shipbuilding, rail,structural fabrication and more.

Specifications range
Thickness:2.5-120mm
Width:1000-3000mm
Length: As request

Chemical composition and mechanical properties

Chemical Composition

Steel grade	C	Si	Mn	P	S	Als
Grade AH36	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade DH36	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade EH36	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade FH36	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015

Processing for Different Grades
Grade D, E (DH32, DH36, EH 32, EH 36)
Grade D and E series (inlcuding AH32/36, DH32, DH36, EH32, EH36) shipbuilding steel plates require good low temperature toughness and good welding performance. The production high-strength shipbuilding steel plate needs to be normalized by means of controlled rolling and controlled cooling or heat treatment processes with more complete equipment. At the same time, the internal steel purity of the supplied billets is required to be high, especially the content of S, P, N, 0 and H in the steel should be strictly controlled.

Alloy Elements Added to Improve Toughness
In order to ensure the performance of high-strength ship plates, micro-alloying technology is adopted. By adding Nb, V, Ti and other alloying elements to the steel, combined with the controlled rolling process, the grain is refined and the toughness is improved.
Direction of Development for Shipbuilding Plate
High strength, high specification, with the ship's large-scale and safety, and changes in coating specifications, the demand for ordinary A-class panels is gradually reduced, and the demand for high-strength panels is increasing, which is concentrated in large ships of 5m wide. Plate, 200-300mm thickness special thick ship board.

Mechanical Properties

Steel grade	Yield point/MPa	Tensile point /MPa	Elongation/%	Temperature/° C	V-type impact test
					Akv/J
					≤50MM	50-70MM	70-100MM
Grade AH36	≥355	490-630	≥21	0	34/24	41/27	50/34
Grade DH36	≥355	490-630	≥21	-20	34/24	41/27	50/34
Grade EH36	≥355	490-630	≥21	-40	34/24	41/27	50/34
Grade FH36	≥355	490-630	≥21	-60	34/24	41/27	50/34

Warehouse storage

The company mainly engaged in steel production, sales and other businesses. The main products include all kinds of steel plate, steel pipe, bar, profile and other materials and section steel. At the same time is a number of domestic large steel mill level agents, with a certain price advantage.

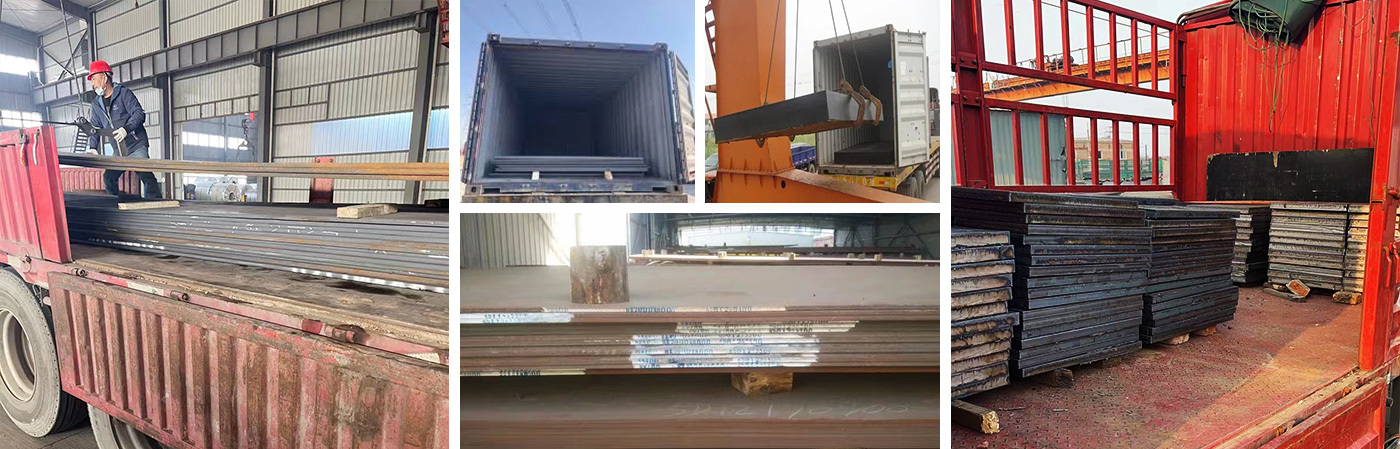

Packaging and shipping

For many years, the company has been established, adhering to the purpose of "respecting contract, keeping faith, customer first, reputation first, quality first", adhering to the customer demand as the center, to "achieve what customers think, think what customers think" business philosophy, to "one sale, small profit, real price, timely delivery" business principle, we manage all kinds of specifications and materials of steel pipe and profile for customers.

Customer communication

Over the years since its establishment, the company has been adhering to the purpose of "honoring contract, keeping faith, customer first, reputation first, quality first", adhering to the customer demand as the center, to "reach customer think, think customer think" business philosophy.

Application area

The main supply fields are: aerospace, national defense equipment, military weapons, chemical industry, shipbuilding, nuclear energy, trains, containers, environmental protection, precision machining, auto parts, machinery, electronic products, molds, medical treatment Equipment, construction, decoration, etc.
